• Country
• Yugoslavia

• Manufacturer / Brand
• Ei, Elektronska Industrija; Niš - see also RR

• Year
• 1967 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 330113

• • Brand: Ei

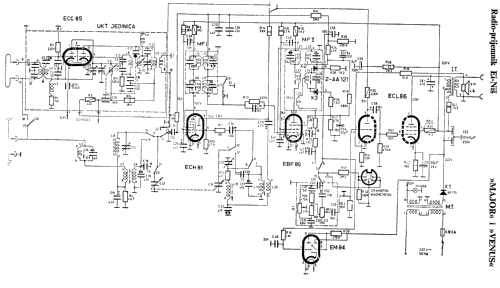

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECC85 ECH81 EBF89 ECL86 EM84

• Number of Transistors

• Semiconductors
• AA121 AA121 BY170

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Major [FM CCIR] - Ei, Elektronska Industrija; Ni

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 510 x 230 x 170 mm / 20.1 x 9.1 x 6.7 inch

• Notes

• Wavebands:
  FM = 88 - 104 MHz
  SW = 48.5 - 51.25 m
  MW = 550 - 1400 kHz

  Connectors for 2nd speaker, record player, tape. FM dipole and ferrite antenna.

• Net weight (2.2 lb = 1 kg)
• 6.5 kg / 14 lb 5.1 oz (14.317 lb)

• Mentioned in
• -- Schematic
