• Country
• Yugoslavia

• Manufacturer / Brand
• Ei, Elektronska Industrija; Niš - see also RR

• Year
• 1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 329921

• • Brand: Ei

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH81 EBF80 ECL82 EZ80 EM80

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: RR240 [EBF80] - Ei, Elektronska Industrija; Ni

• Notes

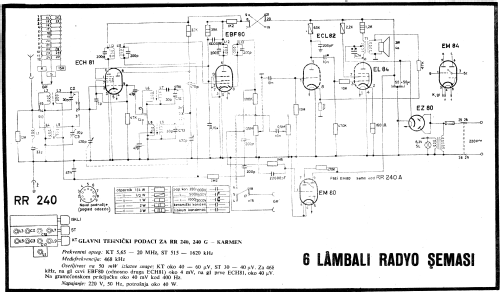

• The schematic lists both versions RR240 and RR240A, with a note: "caution: EM80 only in RR240A". This might be in error and RR240A equipped with the more modern magic eye. Remains to be determined.

• Mentioned in
• -- Schematic

• Other Models

• Here you find 130 models, 111 with images and 67 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Ei, Elektronska Industrija; Niš - see also RR
