• Country
• Yugoslavia

• Manufacturer / Brand
• Ei, Elektronska Industrija; Niš - see also RR

• Year
• 1962 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 337286

• • Brand: Ei

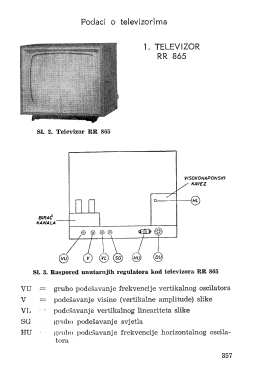

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• PCF80 PCC88 EF85 EF80 EF80 PCL84 PCF80 PCF80 EF80 PCL82 PL84 ECH83 PCF80 ECC82 PL36 PY81 DY87 PF86 PCL82 AW59-90

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: RR865 - Ei, Elektronska Industrija; Ni

• Shape
• Tablemodel, with any shape - general.

• Notes

• Based on chassis Philips 21TX250A.

• Author
• Model page created by Radovan Drobnjakovic. See "Data change" for further contributors.
