324-K RF Signal Generator Kit
EICO (Electronic Instrument Co.Inc.) Brooklyn
- Country
- United States of America (USA)
- Manufacturer / Brand
- EICO (Electronic Instrument Co.Inc.) Brooklyn
- Year
- 1956
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 99439
Funkschau,Heft 3 1964

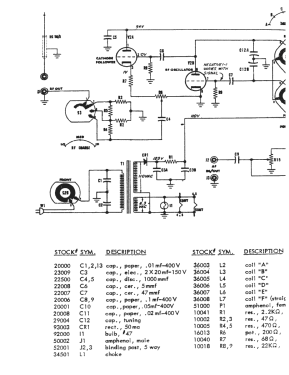

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: 324-K RF Signal Generator Kit - EICO Electronic Instrument Co.
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 10 x 8 x 4.75 inch / 254 x 203 x 121 mm
- Notes
- Expanded frequency range of 6 bands: 150-400 kc, 400-1200 kc, 1.2-3.5 mc, 3.5-11 mc, 11-37 mc and37-147 mc.
- Price in first year of sale
- 27.00 $
- Literature/Schematics (1)
- Allied Radio Catalog Nº 150, 1956
- Author
- Model page created by Vitor Oliveira. See "Data change" for further contributors.
- Other Models
-
Here you find 183 models, 180 with images and 130 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from EICO (Electronic Instrument Co.Inc.) Brooklyn
Forum contributions about this model: EICO Electronic: 324-K RF Signal Generator Kit
Threads: 1 | Posts: 1
Hi,

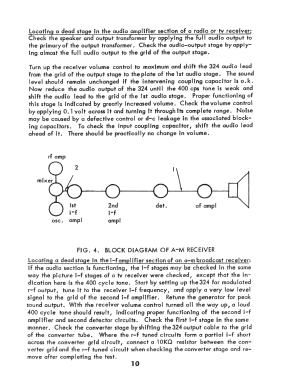

I've got a copy of the instruction manual, 11 pages. It's only of poor quality, but if somebody is interested in (e-mail), I'll try a scan and send it by mail.
Regards
Hans
Hans-Georg Schirmer, 29.May.11
