• Country
• United States of America (USA)

• Manufacturer / Brand
• EICO (Electronic Instrument Co.Inc.) Brooklyn

• Year
• 1961

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 286550

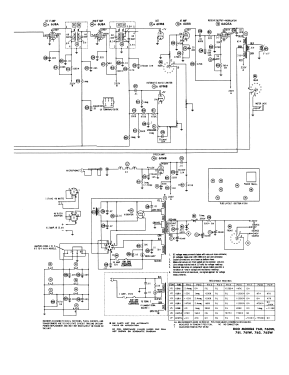

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes

• Main principle
• Transceiver

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 3 inch = 7.6 cm

• Material
• Metal case

• from Radiomuseum.org
• Model: 760 - EICO Electronic Instrument Co.

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

• The Eico 760 is a citizens band traansceiver operating in the 11 meter band on 23 channels with continuous tuning for the receiver. it has a 5 watt, crystal controlled transmitter section.

• Price in first year of sale
• 89.95 USD

• Mentioned in
• QST (February 1961 page 111)

• Author
• Model page created by Wayne Childress. See "Data change" for further contributors.
