HF-32

EICO (Electronic Instrument Co.Inc.) Brooklyn

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
EICO (Electronic Instrument Co.Inc.) Brooklyn

Year
1959 ??

Category
Audio Amplifier or -mixer

Radiomuseum.org ID
132175

Schematics

HF-32 ; EICO Electronic (ID = 647318) Ampl/Mixer — EICO Electronic HF-32 (3)

HF-32 ; EICO Electronic (ID = 647319) Ampl/Mixer — EICO Electronic HF-32 (3)

HF-32 ; EICO Electronic (ID = 647321) Ampl/Mixer — EICO Electronic HF-32 (3)

HF-32 ; EICO Electronic (ID = 647322) Ampl/Mixer — EICO Electronic HF-32 (3)

HF-32 ; EICO Electronic (ID = 647323) Ampl/Mixer — EICO Electronic HF-32 (3)

HF-32 ; EICO Electronic (ID = 647325) Ampl/Mixer — EICO Electronic HF-32 (3)

HF-32 ; EICO Electronic (ID = 465333) Ampl/Mixer — EICO Electronic HF-32 (2)
aus ebay, Verkäufer kevco12

HF-32 ; EICO Electronic (ID = 465334) Ampl/Mixer — EICO Electronic HF-32 (2)
aus ebay, Verkäufer kevco12

HF-32 ; EICO Electronic (ID = 465335) Ampl/Mixer — EICO Electronic HF-32 (2)
aus ebay, Verkäufer kevco12

HF-32 ; EICO Electronic (ID = 465336) Ampl/Mixer — EICO Electronic HF-32 (2)
aus ebay, Verkäufer kevco12

HF-32 ; EICO Electronic (ID = 466554) Ampl/Mixer — EICO Electronic HF-32 (2)
aus ebay, Verkäufer deckrullo

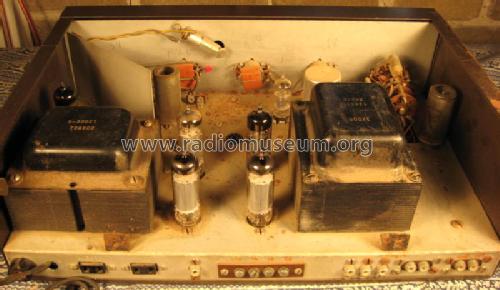

HF-32 ; EICO Electronic (ID = 466556) Ampl/Mixer — EICO Electronic HF-32 (2)
aus ebay, Verkäufer deckrullo

HF-32 ; EICO Electronic (ID = 1293464) Ampl/Mixer — EICO Electronic HF-32 (2)

HF-32 ; EICO Electronic (ID = 1293465) Ampl/Mixer — EICO Electronic HF-32 (2)

HF-32 ; EICO Electronic (ID = 1293467) Ampl/Mixer — EICO Electronic HF-32 (2)

HF-32 ; EICO Electronic (ID = 3105074) Ampl/Mixer — EICO Electronic HF-32 (2)

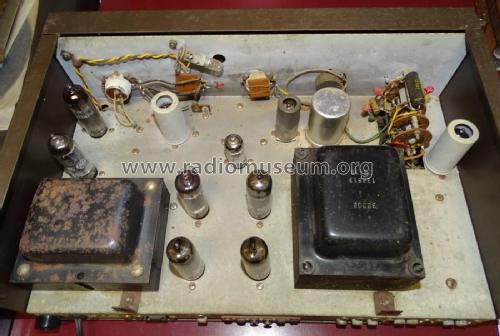

HF-32 ; EICO Electronic (ID = 3105076) Ampl/Mixer — EICO Electronic HF-32 (2)

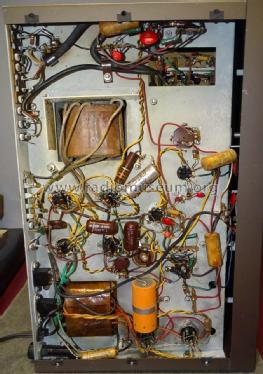

HF-32 ; EICO Electronic (ID = 3105077) Ampl/Mixer — EICO Electronic HF-32 (2)

HF-32 ; EICO Electronic (ID = 647326) Ampl/Mixer — EICO Electronic HF-32 (2)
Sams Photofact Folders

HF-32 ; EICO Electronic (ID = 2986243) Ampl/Mixer — EICO Electronic HF-32 (2)
Audio Magazin Jänner 1958

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
10

Valves / Tubes
12AX7 12AX7 6C4 6C4 EL84 EL84 EL84 EL84 EZ81 EZ81

Main principle
Audio-Amplification

Wave bands
- without

Power type and voltage
Alternating Current supply (AC) / 110 - 120 Volt

Loudspeaker
- This model requires external speaker(s).

Power out
30 W (unknown quality)

Material
Metal case

from Radiomuseum.org
Model: HF-32 - EICO Electronic Instrument Co.

Shape
Tablemodel, low profile (big size).

Notes
Integrated amp, mono, with several phono equalization settings.

Source of data
-- Collector info (Sammler)

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Date 7-59, Set 450, Folder 6)

Author
Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
