Oscilloscope 465

• Country
• United States of America (USA)

• Manufacturer / Brand
• EICO (Electronic Instrument Co.Inc.) Brooklyn

• Year
• 1969 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 349473

• Picture

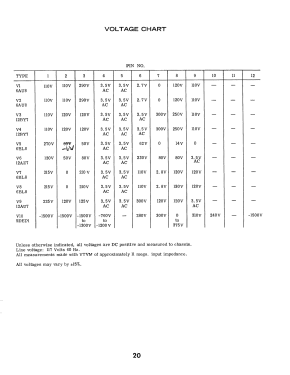

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 6AU8 6AU8 12BY7 12BY7 6BL8 12AZ7 6BL8 6BL8 12AU7

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Oscilloscope 465 - EICO Electronic Instrument Co.

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 8 x 12 x 17 inch / 203 x 305 x 432 mm

• Notes

• CRT is 5DEP.

• Mentioned in
• - - Manufacturers Literature (1974 EICO Catalog Page 14)

• Literature/Schematics (1)
• - - Manufacturers Literature (EICO 465 Professional Oscilloscope Operating Manual)

• Author
• Model page created by Ed Riley. See "Data change" for further contributors.
