• Country
• United States of America (USA)

• Manufacturer / Brand
• EICO (Electronic Instrument Co.Inc.) Brooklyn

• Year
• 1952–1968 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 355325

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / AA: 4 x 1.5 & D: 1 x 1.5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

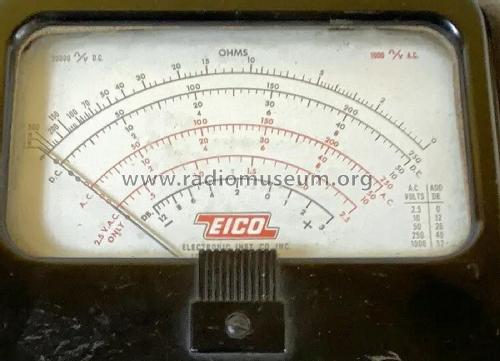

• Model: Precision Analog Multimeter 555 - EICO Electronic Instrument Co.

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 5.25 x 6.75 x 3 inch / 133 x 171 x 76 mm

• Notes

• Similar to Eico 565 except that it uses 1% precision reistors.

• Net weight (2.2 lb = 1 kg)
• 2.75 lb (2 lb 12 oz) / 1.249 kg

• Price in first year of sale
• 39.95 USD

• Mentioned in

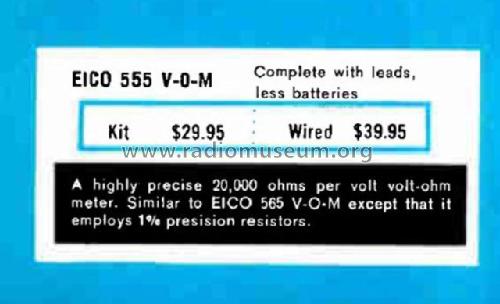

• - - Manufacturers Literature (1968 Eico catalog, page 21)

• Literature/Schematics (1)
• - - Manufacturers Literature (Instruction Manual for Models 565-555 Multimeters, EICO, 1952)

• Author
• Model page created by David Erali. See "Data change" for further contributors.
