Signal Generator 324

• Country
• United States of America (USA)

• Manufacturer / Brand
• EICO (Electronic Instrument Co.Inc.) Brooklyn

• Year
• 1956

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 80435

• Picture

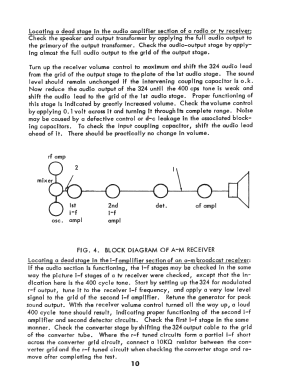

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 12AV7 12AU7

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Signal Generator 324 - EICO Electronic Instrument Co.

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 255 x 203 x 122 mm / 10 x 8 x 4.8 inch

• Notes

• Signal Generator (Messsender) Band A: 150kHz - 400kHz Band B: 400kHz - 1.2MHz Band C: 1.2MHz - 3.5MHz Band D: 3.5MHz - 11MHz Band E: 11MHz - 37MHz Band F1: 37MHz - 145MHz Band F2: 110MHz - 435MHz

  Genauigkeit: +-1%, Grob und Feinabschächer, Ausgangsimpedanz: 50Ω, interne Modulation: 400Hz, Modulationstiefe: 0-50%

• Mentioned in
• Österreichische Radioschau 1961, Seite 413

• Author
• Model page created by Christian Bruckner. See "Data change" for further contributors.
