• Country
• Australia

• Manufacturer / Brand
• EILCO (Electronic, Instrument & Lighting Co.); Adelaide

• Year
• 1963/1964

• Category
• Commercial Transmitter & Receiver (TRX not Amateur)

• Radiomuseum.org ID
• 275525

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 6CK6 6CW5

• Number of Transistors
• 7

• Semiconductors
• AF116 AF116 AF116 AC126 AC127 AC128 2N3055 2N3055

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Batteries / addl. power jack / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Metal case

• from Radiomuseum.org

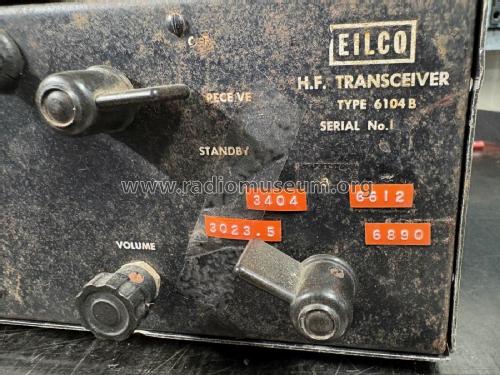

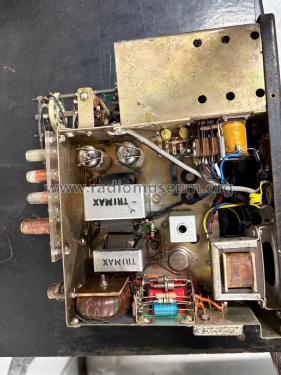

• Model: 6104 B - EILCO Electronic, Instrument &

• Shape
• Rack

• Notes

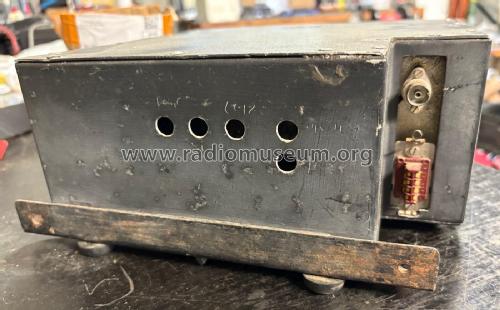

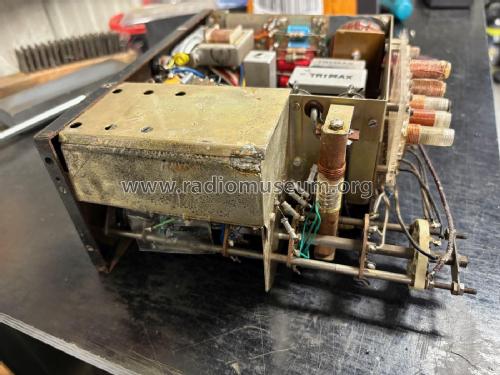

• 12 crystal locked channels, mechanical (magnetoastrictive) bandpass IF filter. Two valve transmitter, 8 watts RF. AM only. 6104B was a special aircraft version with an aluminium case.

  B+ from a DC/DC converter powered by 2N3055's.

• Mentioned in
• - - Manufacturers Literature (EILCO Advert)

• Literature/Schematics (1)
• HRSA Radio Waves, No. 109, July 2009, Page 16

• Author
• Model page created by Gary Cowans. See "Data change" for further contributors.
