Funk-Fernsteueranlage Handsender - Wireless remote control transmitter H126

Einhell Germany AG; Landau/Isar

Data
Forum
Pictures
Collections

  • Year
  • 1995 ??
  • Category
  • Miscellaneous (Other, Various) - see notes
  • Radiomuseum.org ID
  • 355936

 Technical Specifications

  • Number of Transistors
  • 3
  • Semiconductors
  • Main principle
  • Transmitter
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Dry Batteries / 1 x 9 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Funk-Fernsteueranlage Handsender - Wireless remote control transmitter H126 - Einhell Germany AG; Landau/
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 60 x 110 x 25 mm / 2.4 x 4.3 x 1 inch
  • Notes

  • Hand-held single-channel wireless remote control unit for use with many Einhell products, such as opener drives for garage doors and swing and sliding gates, as well as for the FLS116 radio-controlled switch. Several remote control units can be used with each item if they are all programmed with the same code.

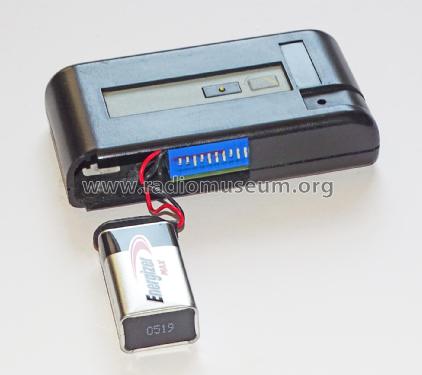

    10 DIP switches allow one of 1024 codes to be selected. The controller is not suitable for high security applications. Since the transmitted code does not change with each activation, it may be received and retransmitted by an intruder.

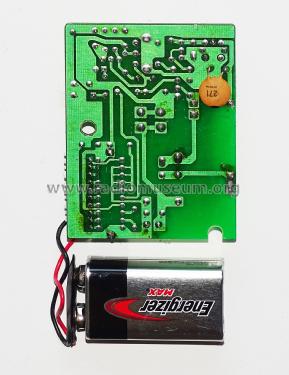

    The unit uses a Holtek HT600 CMOS LSI encoder and a ferrite rod antenna. A red confidence LED illuminates only during transmission. There is no quiescent battery drain when the transmit button is not pressed.

    Operating frequency 26.995 MHz
    Maximum range about 10-35 m.
    Operating temperature -10˚C to +40˚C

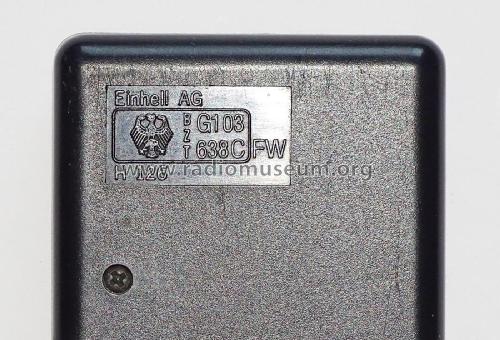

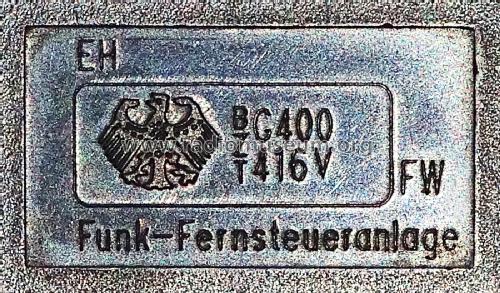

    Approval (Zulassung für Deutschland) BZT G400 416V or G103 638C

  • Net weight (2.2 lb = 1 kg)
  • 0.137 kg / 0 lb 4.8 oz (0.302 lb)
  • Mentioned in
  • - - Manufacturers Literature
  • Author
  • Model page created by Bruce Taylor. See "Data change" for further contributors.
