• Country
• Hungary

• Manufacturer / Brand
• EKA; Budapest

• Year
• 1943

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 93139

• • alternative name: Engel Károly Elektromos Szerelésianyagok és Készülékek Gyára, Budapest.

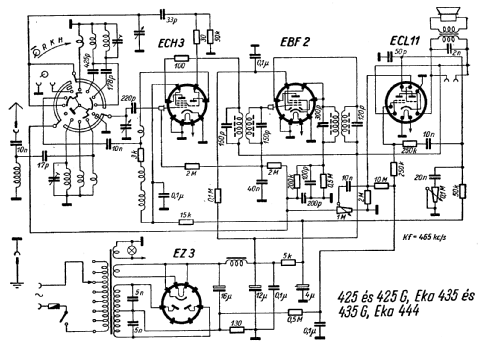

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH3 EBF2 ECL11 EZ3 EM4

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Szuper 435 - EKA; Budapest

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 540 x 320 x 220 mm / 21.3 x 12.6 x 8.7 inch

• Notes
• KW-Bereich 20-55m

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Price in first year of sale
• 335.00 Pengö

• Source of data
• Rádiókészülékek Kapcsolásai 1936-56

• Author
• Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
