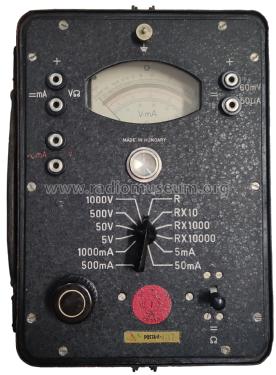

Univeka 144
EKA; Budapest
- Country
- Hungary
- Manufacturer / Brand
- EKA; Budapest
- Year
- 1948–1954
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 183564
-
- alternative name: Engel Károly Elektromos Szerelésianyagok és Készülékek Gyára, Budapest.
- Wave bands
- - without
- Power type and voltage
- Dry Batteries / 1,5 & 15 or 3 × 4,5 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Univeka 144 - EKA; Budapest
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 190 x 255 x 120 mm / 7.5 x 10 x 4.7 inch
- Notes

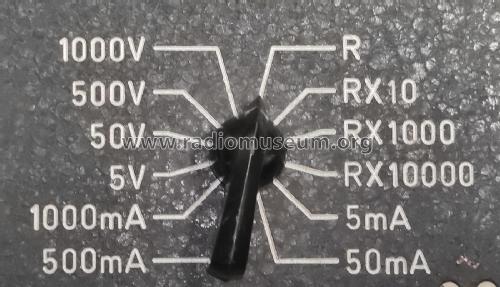

- DC: 5/50/500/1000 mA. 60 mV 5/50/500/1000 V. AC: 5/50/500/1000 mA. 5/50/5000/1000 V Ohm: 30 kOhm, 3 MOhm, 30 MOhm.
- Net weight (2.2 lb = 1 kg)
- 4.5 kg / 9 lb 14.6 oz (9.912 lb)
- Literature/Schematics (1)
- Magyari Béla: Villamos Mérőműszerek, Bp.1958.
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
