- Country
- Great Britain (UK)
- Manufacturer / Brand
- Ekco, E.K.Cole Ltd.; Southend-on-Sea
- Year
- 1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 102538
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 10700 kHz
- Tuned circuits
- 8 FM circuit(s)
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

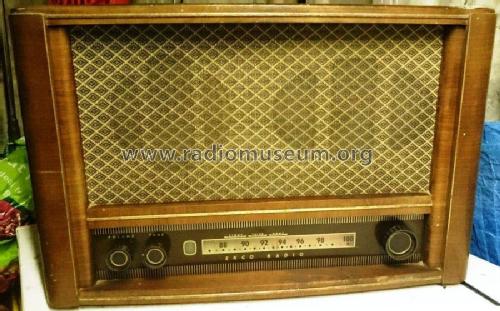

- Model: A277 - Ekco, E.K.Cole Ltd.; Southend-
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Same chassis as the Ekco A274 model housed in a more expensive wooden cabinet.
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)

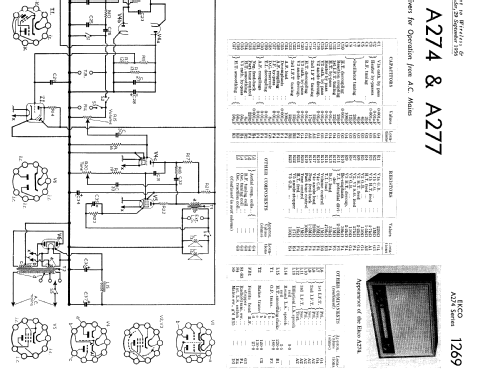

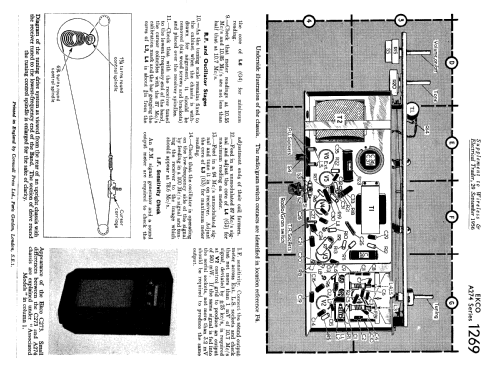

- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1269)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
