- Country
- Great Britain (UK)
- Manufacturer / Brand
- Ekco, E.K.Cole Ltd.; Southend-on-Sea
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 17753

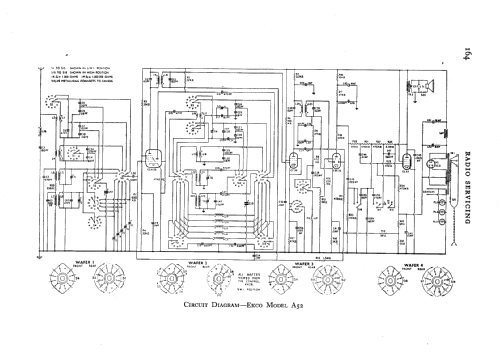

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 100-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: A52 - Ekco, E.K.Cole Ltd.; Southend-
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 536 x 425 x 247 mm / 21.1 x 16.7 x 9.7 inch
- Notes
- 3 x KW Released October 1947 price £28 7s 0d
- Net weight (2.2 lb = 1 kg)
- 14.2 kg / 31 lb 4.4 oz (31.278 lb)
- Price in first year of sale
- 28.00 GBP
- External source of data
- E. Erb 3-907007-36-0
