• Country
• Great Britain (UK)

• Manufacturer / Brand
• Ekco, E.K.Cole Ltd.; Southend-on-Sea

• Year
• 1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 78311

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• FC4 AC/VP1 or VP4 V914 354V AC/Pen UU3

• Main principle
• Superheterodyne (common); ZF/IF 130 kHz

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Bakelite case

• from Radiomuseum.org

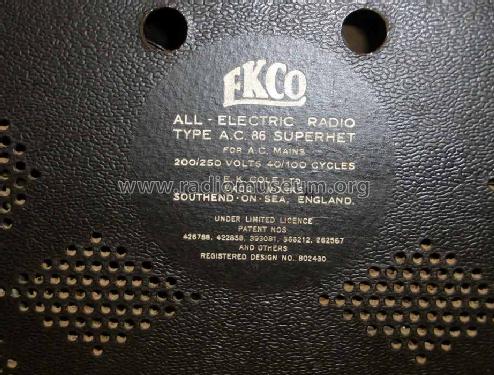

• Model: AC86 [brown] - Ekco, E.K.Cole Ltd.; Southend-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 22 x 12 x 8.5 inch / 559 x 305 x 216 mm

• Notes
• Also SW86 and B86. All versions available in black or in brown (walnut) Bakelite.

• Source of data
• Radio! Radio!

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
