- Country
- Great Britain (UK)
- Manufacturer / Brand
- Ekco, E.K.Cole Ltd.; Southend-on-Sea
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 185304
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF with regeneration
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- AC/DC-set / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite case
- from Radiomuseum.org

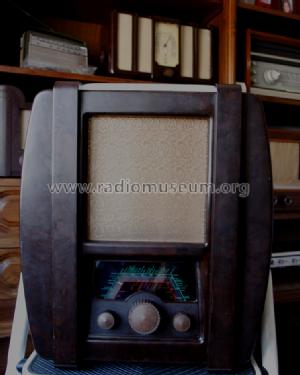

- Model: AD37 - Ekco, E.K.Cole Ltd.; Southend-
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 430 x 380 x 220 mm / 16.9 x 15 x 8.7 inch
- Notes
- also made in Belgium, using different valves.
- Literature/Schematics (1)

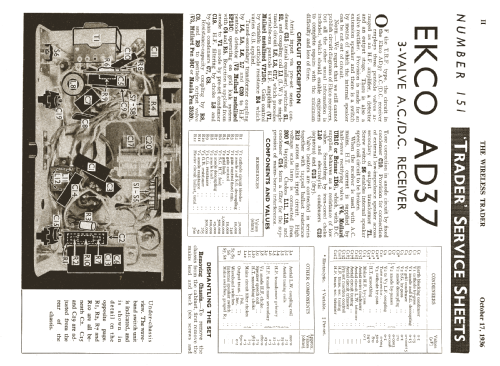

- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (151)
- Literature/Schematics (2)
- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (657)
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
