• Country
• Great Britain (UK)

• Manufacturer / Brand
• Ekco, E.K.Cole Ltd.; Southend-on-Sea

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 78601

• Number of Tubes
• 6

• Valves / Tubes
• FC4 VP4B or VP41 TDD4 TV4 AC042 IW4/350

• Main principle
• Superheterodyne (common); ZF/IF 126.5 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Material
• Bakelite case

• from Radiomuseum.org

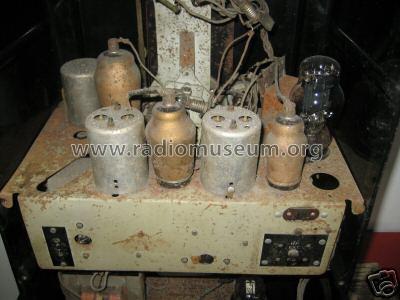

• Model: All Electric AC97 [black] - Ekco, E.K.Cole Ltd.; Southend-

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 12.75 x 21 x 8.5 inch / 324 x 533 x 216 mm

• Notes
• "Mystic Eye" tuning indicator.
  Also a brown version.

• Source of data
• Radio! Radio!

• Literature/Schematics (1)
• Trader sheet 664

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
