AM/FM Transistor Portable PT313
Ekco, E.K.Cole Ltd.; Southend-on-Sea
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Ekco, E.K.Cole Ltd.; Southend-on-Sea
- Year
- 1969
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 303616

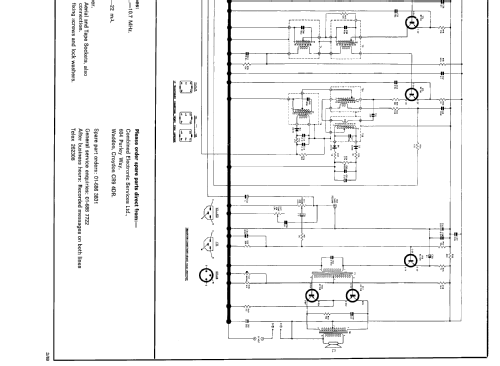

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 8
- Main principle
- Superheterodyne (common); ZF/IF 470/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Dry Batteries / 6 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: AM/FM Transistor Portable PT313 - Ekco, E.K.Cole Ltd.; Southend-
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-
Elliptical loudspeaker 7 x 3.625 inch. Sockets for earphone/tape recorder and external areial
- Literature/Schematics (1)
- - - Manufacturers Literature (Ekco Service Sheet dated 3/69)
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
