• Year
  • 1956
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 79720

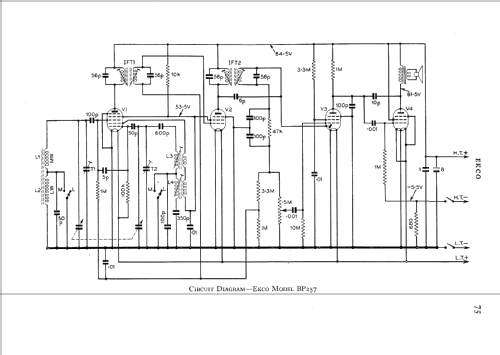

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); 2 AF stage(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Dry Batteries
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org

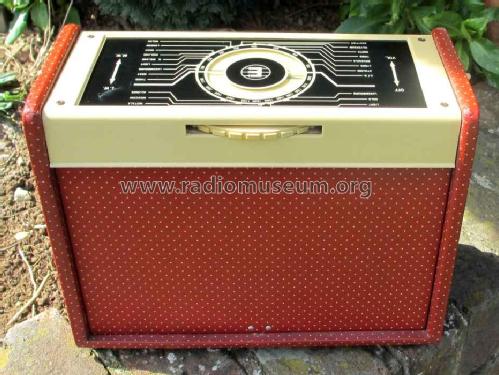

  • Model: BP257 - Ekco, E.K.Cole Ltd.; Southend-
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 255 x 200 x 110 mm / 10 x 7.9 x 4.3 inch
  • Author
  • Model page created by Gerwin Menkhorst. See "Data change" for further contributors.
