• Country
• Great Britain (UK)

• Manufacturer / Brand
• Ekco, E.K.Cole Ltd.; Southend-on-Sea

• Year
• 1953

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 102605

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EF41 ECH42 EAF42 EAF42 EL42 EZ41

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: CR117 [12 Volt] - Ekco, E.K.Cole Ltd.; Southend-

• Shape
• Chassis only or for «building in»

• Notes

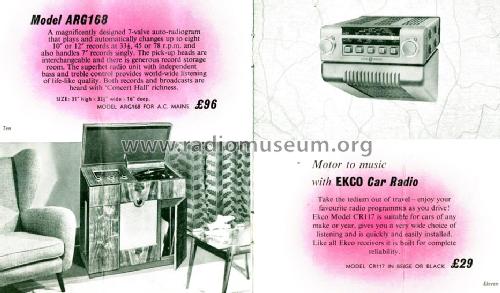

• A folder from 9/53 (PR/53-1) shows the following models:
  A160, U199, A147, U195, U215, MBP183, ARG210, ARG168 and car radio CR117 for 6 volts and for 12 volts.

• Price in first year of sale
• 29.00 £

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
