- Country
- Great Britain (UK)
- Manufacturer / Brand
- Ekco, E.K.Cole Ltd.; Southend-on-Sea
- Year
- 1962
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 115983

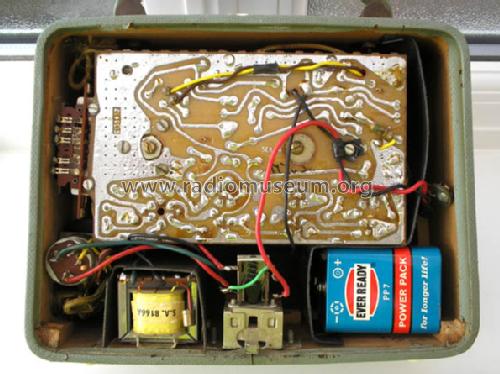

Courtesy of Ben Bayram.
Courtesy of Ben Bayram.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 8
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Line / Batteries (any type) / 200-250 / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: MBT414 - Ekco, E.K.Cole Ltd.; Southend-
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
- Socket for external aerial. Released July 1962 price £14 13s 3d plus purchase tax. Same as Ferranti model MBT1089 with slightly different case.
- Price in first year of sale
- 18.00 GBP
- Source of data
- -- Collector info (Sammler)
- Literature/Schematics (1)
- - - Manufacturers Literature
- Literature/Schematics (2)
- Trader sheet 1595
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
