- Country
- Great Britain (UK)
- Manufacturer / Brand
- Ekco, E.K.Cole Ltd.; Southend-on-Sea
- Year
- 1939 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 218400
- Number of Tubes
- 4
- Main principle
- TRF with regeneration
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries / 2 x 1.5 & 90 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 19 cm = 7.5 inch
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: P151 - Ekco, E.K.Cole Ltd.; Southend-
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 310 x 280 x 180 mm / 12.2 x 11 x 7.1 inch
- Notes

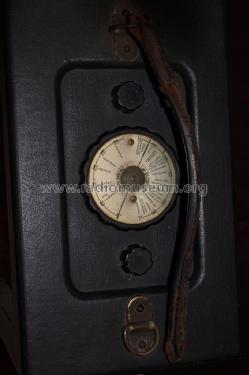

- The Ekco portable battery radio model P151 has a reaction (TRF). See one knob. At the side is the knob for band selection.
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
