- Country
- Great Britain (UK)
- Manufacturer / Brand
- Ekco, E.K.Cole Ltd.; Southend-on-Sea
- Year
- 1961
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 102619
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Main principle
- Superheterodyne (common); ZF/IF 470/10700 kHz; 3 AF stage(s)
- Tuned circuits
- 5 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: PT379 - Ekco, E.K.Cole Ltd.; Southend-
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 12 x 9.75 x 4.25 inch / 305 x 248 x 108 mm
- Notes
- Rexine covered wooden case. Elliptical loudspeaker 5 x 2.75 inch. Sockets for AM aerial, FM aerial and tape recorder. Same chassis as the Ferranti model PT1065.
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)

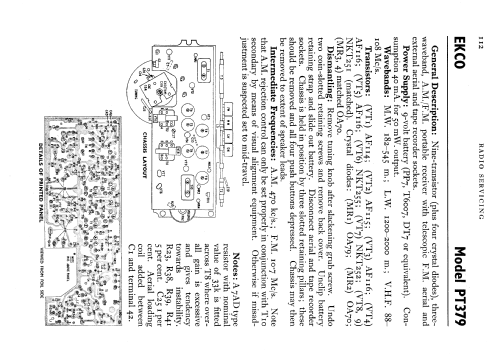

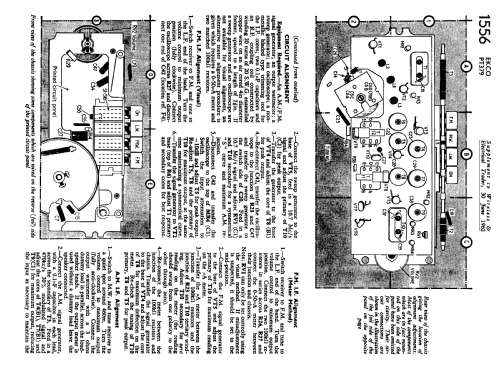

- Trader Sheet 1556
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
