- Country
- Great Britain (UK)
- Manufacturer / Brand
- Ekco, E.K.Cole Ltd.; Southend-on-Sea
- Year
- 1965 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 226459

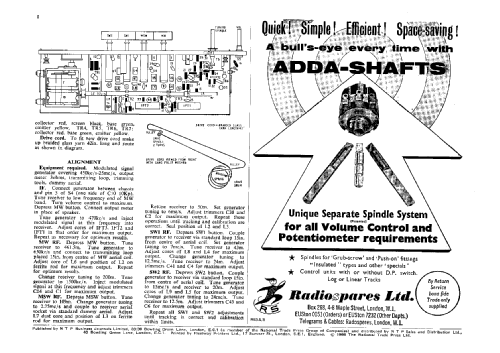

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Storage and/or dry batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: PT 843 - Ekco, E.K.Cole Ltd.; Southend-
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Source of data
- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.)
- Author
- Model page created by Ernst Röggla. See "Data change" for further contributors.
- Other Models
-
Here you find 425 models, 312 with images and 255 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Ekco, E.K.Cole Ltd.; Southend-on-Sea
