- Country
- Great Britain (UK)
- Manufacturer / Brand
- Ekco, E.K.Cole Ltd.; Southend-on-Sea
- Year
- 1966 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 226456

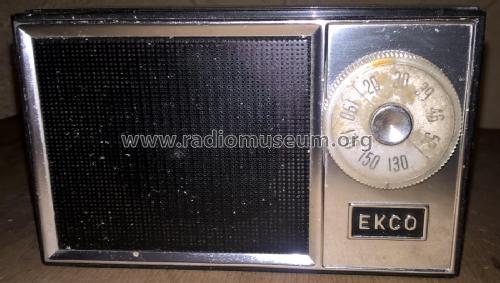

Ekco PTP301 Front view.

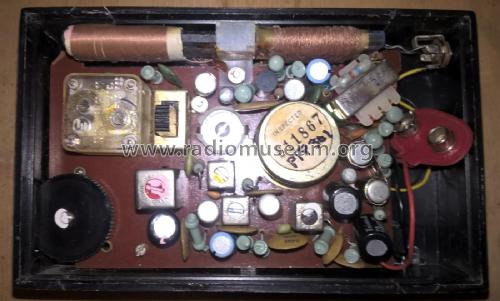

Ekco PTP301 Inside view.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: PTP 301 - Ekco, E.K.Cole Ltd.; Southend-
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 116 x 70 x 37 mm / 4.6 x 2.8 x 1.5 inch
- Net weight (2.2 lb = 1 kg)
- 0.210 kg / 0 lb 7.4 oz (0.463 lb)
- Source of data
- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.)
- Author
- Model page created by Ernst Röggla. See "Data change" for further contributors.
