• Country
• Great Britain (UK)

• Manufacturer / Brand
• Ekco, E.K.Cole Ltd.; Southend-on-Sea

• Year
• 1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 303623

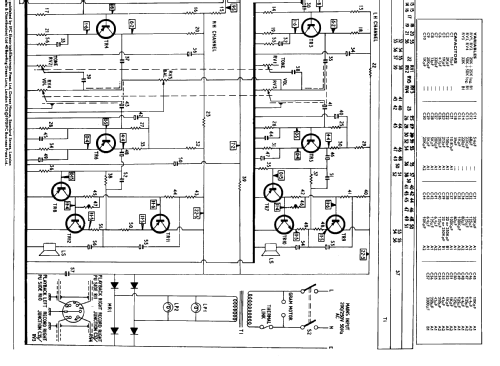

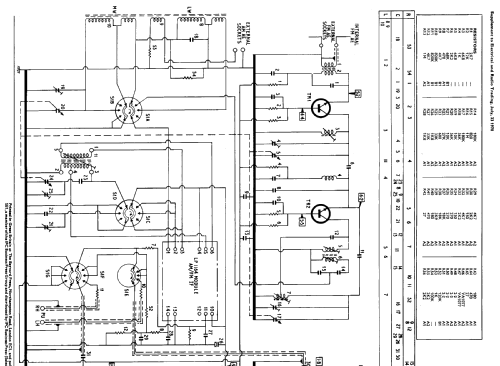

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 15

• Semiconductors
• AF115 AF116 AF114 BF194 BF195 BC158 BC158 OC75 OC75 AC128 AC128 AC128 AC176 AC128 AC176

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

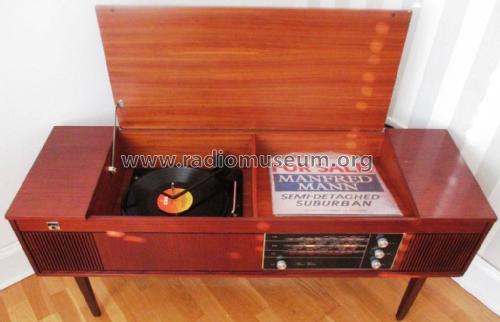

• Model: Stereo Radiogram SRG608 - Ekco, E.K.Cole Ltd.; Southend-

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Fitted with a BSR UA15 autochanger and BSR SX5M cartridge. The first three transistors are in a Mullard LP1164 IF module. Two 8 x 5 inch elliptical pm loudspeakers. Sockets for AM and FM aerials. Later models have a record/playback socket. Similar to the PYE 1216 radiogram.

• Mentioned in
• ERT Service chart 1753 dated July 23 1970

• Author
• Model page created by Howard Craven. See "Data change" for further contributors.
