• Country
• Great Britain (UK)

• Manufacturer / Brand
• Ekco, E.K.Cole Ltd.; Southend-on-Sea

• Year
• 1954

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 97275

• Number of Tubes
• 18

• Valves / Tubes
• PCC84 PCF80 10F1 10F1 10F1 20D1 20F2 20L1 20P4 U25 U301 20D1 10F1 10F1 20D1 10P13 20P5 CRM141

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• AC/DC-set / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

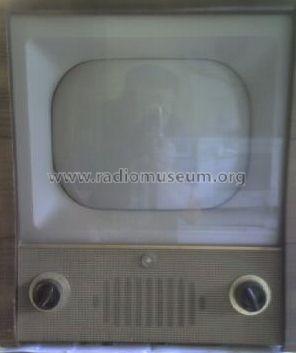

• Model: T221 - Ekco, E.K.Cole Ltd.; Southend-

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 17.25 x 20.5 x 22.5 inch / 438 x 521 x 572 mm

• Notes
• 14 inch 405 line b/w table TV set with a 12 channel GB VHF band I/III tuner.

• Price in first year of sale
• 69.30 GBP

• Source of data
• -- Collector info (Sammler)

• Literature/Schematics (1)
• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1218/T85)

• Literature/Schematics (2)
• Wireless World (The), London (WW, 79) (Vol. 60, September 1954, p. 94 (ad.))

• Author
• Model page created by a member from A. See "Data change" for further contributors.
