- Country
- Great Britain (UK)
- Manufacturer / Brand
- Ekco, E.K.Cole Ltd.; Southend-on-Sea
- Year
- 1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 121084
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); 2 AF stage(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

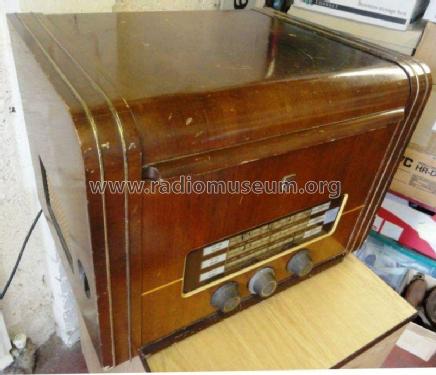

- Model: TRG238 - Ekco, E.K.Cole Ltd.; Southend-
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 500 x 360 x 380 mm / 19.7 x 14.2 x 15 inch
- Notes
- Turnable Garrard RC110.
- Net weight (2.2 lb = 1 kg)
- 13 kg / 28 lb 10.1 oz (28.634 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Giovanni Saoner. See "Data change" for further contributors.
