• Country
• Germany

• Manufacturer / Brand
• Elac Electroacustic GmbH; Kiel

• Year
• 1968/1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 27421

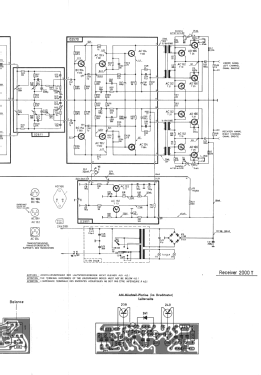

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 35

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 10 AM circuit(s)     15 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: 2000T [Palisander] - Elac Electroacustic GmbH; Kiel

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 630 x 160 x 235 mm / 24.8 x 6.3 x 9.3 inch

• Notes
• Vollstereo, NF-Verstärker mit zwei Endstufen je 10 W.
  Hersteller ist wer und welches Land?

• Net weight (2.2 lb = 1 kg)
• 16 kg / 35 lb 3.9 oz (35.242 lb)

• Price in first year of sale
• 835.00 DM

• External source of data
• erb

• Source of data
• Handbuch VDRG 1968/1969 / Radiokatalog Band 2, Ernst Erb
