• Country
• Germany

• Manufacturer / Brand
• Elac Electroacustic GmbH; Kiel

• Year
• 1973–1975

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29072

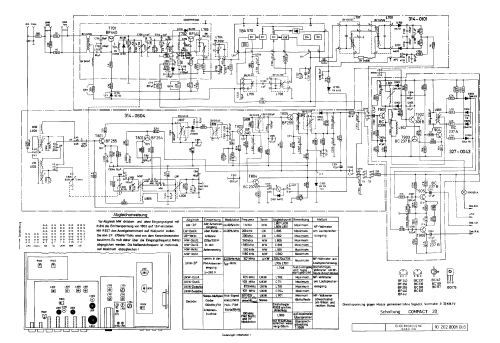

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 24

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 24 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

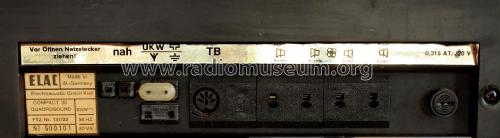

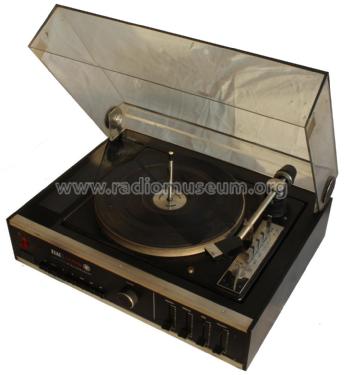

• Model: COMPACT 20 Quadrosound [schwarz] - Elac Electroacustic GmbH; Kiel

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 465 x 180 x 350 mm / 18.3 x 7.1 x 13.8 inch

• Notes
• Vollstereo, NF-Verstärker mit zwei Endstufen je 12 W (Sinus);
  Phono-Chassis = Miracord 625.
  Empfohlene LS-Boxen: LK25, Quadrosound 1 oder 2.

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Price in first year of sale
• 998.00 DM

• External source of data
• Erb

• Source of data

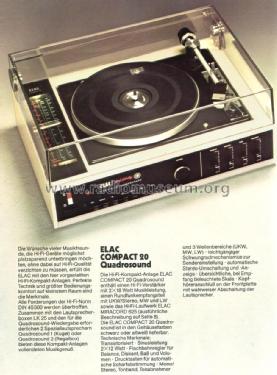

• Katalog RFP 1973 / Radiokatalog Band 2, Ernst Erb
