- Country
- Germany
- Manufacturer / Brand
- Elac Electroacustic GmbH; Kiel
- Year
- 1993 ??
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 264301
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

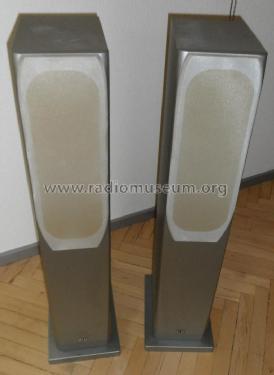

- Model: FS 57 - Elac Electroacustic GmbH; Kiel
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 170 x 900 x 265 mm / 6.7 x 35.4 x 10.4 inch
- Notes
-

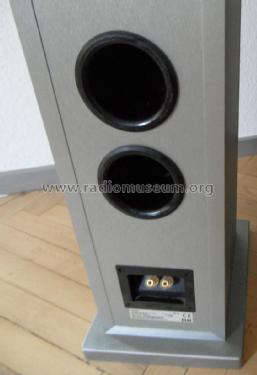

2-Wege Bass Reflex Standlautsprecher

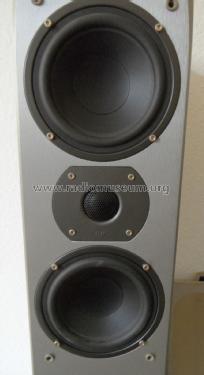

Tieftöner: 2x 145 mm
AS-Konus Hochtöner: 1x 25 mm Kalotte
Belastbarkeit (Nenn-/Musikbelastbarkeit.): 80 / 120 Watt
Wirkungsgrad: 90 dB/2,83V/1m
Frequenzgang: 42 - 23.000 Hz
Übergangsbereiche: 3.000 Hz
Impedanz: 4 – 4,8 Ohm
- Author
- Model page created by a member from A. See "Data change" for further contributors.
