- Country
- Germany
- Manufacturer / Brand
- Elac Electroacustic GmbH; Kiel
- Year
- 1950/1951
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 104551
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 25 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org

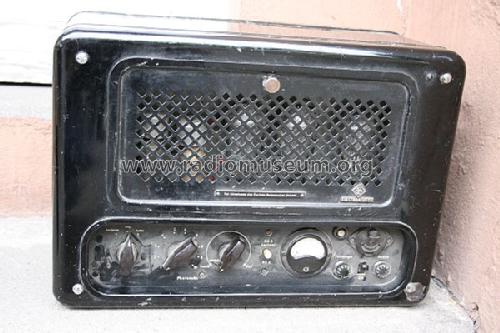

- Model: KV25/2 - Elac Electroacustic GmbH; Kiel
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 450 x 315 x 224 mm / 17.7 x 12.4 x 8.8 inch
- Notes
- 4 Eingänge; Ausgangsspannung: 70 V, 100 V; Ausgangsimpedanz: 200 Ohm, 400 Ohm; Frequenzgang: 30-10000 Hz.
- Net weight (2.2 lb = 1 kg)
- 30 kg / 66 lb 1.3 oz (66.079 lb)
- Price in first year of sale
- 750.00 DM
- Source of data
- Kat.d. Rundf.Gr.Handel 1950/51
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
