Miracord 630
Elac Electroacustic GmbH; Kiel
- Country
- Germany
- Manufacturer / Brand
- Elac Electroacustic GmbH; Kiel
- Year
- 1968–1972
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 117942

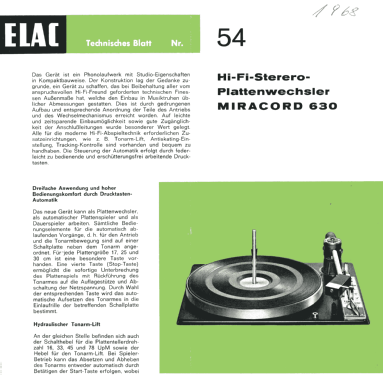

Katalog 1969
Katalog im GFGF Archiv
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Miracord 630 - Elac Electroacustic GmbH; Kiel
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 340 x 210 x 270 mm / 13.4 x 8.3 x 10.6 inch
- Notes
- 4 Geschwindigkeiten; Stereo-Magnetsystem STS244-17, Übertragungsbereich 20···20000 Hz.
- Net weight (2.2 lb = 1 kg)
- 6.3 kg / 13 lb 14 oz (13.877 lb)
- Price in first year of sale
- 324.00 DM
- Source of data
- Handbuch VDRG 1968/1969
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
