• Country
• Germany

• Manufacturer / Brand
• Elac Electroacustic GmbH; Kiel

• Year
• 1958–1962

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 21610

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

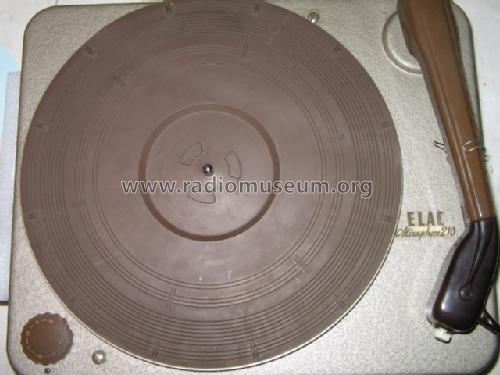

• Model: Miraphon 210 - Elac Electroacustic GmbH; Kiel

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 329 x 193 x 271 mm / 13 x 7.6 x 10.7 inch

• Notes
• Drehzahl des Plattentellers: 16/33/45/78 UpM; Stereo-Magnetsystem, Frequenzbereich 30-16000 Hz.

• Net weight (2.2 lb = 1 kg)
• 5.6 kg / 12 lb 5.4 oz (12.335 lb)

• Price in first year of sale
• 123.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1958/59 / Radiokatalog Band 2, Ernst Erb
