• Country
• Germany

• Manufacturer / Brand
• Elac Electroacustic GmbH; Kiel

• Year
• 1967 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 204282

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 20

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 44 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

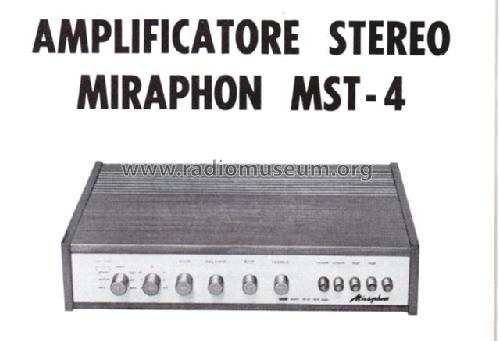

• Model: Miraphon MST-4 - Elac Electroacustic GmbH; Kiel

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 448 x 100 x 330 mm / 17.6 x 3.9 x 13 inch

• Notes

• Amplificatore MIRAPHON risposta di frequenza 10-80000 Hz, oltre hai transistor sono presenti 4 diodi, prezzo dell'epoca 137.200 lire,distribuito dalla GBC MILANO.

• Author
• Model page created by Pasquale Baiocato. See "Data change" for further contributors.
