• Country
• Germany

• Manufacturer / Brand
• Elac Electroacustic GmbH; Kiel

• Year
• 1961 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 138720

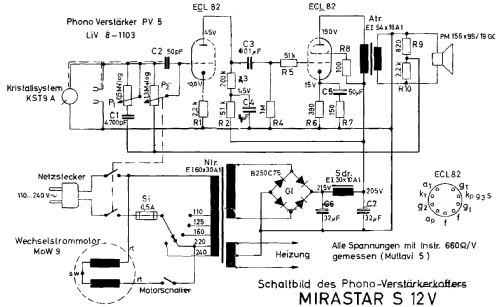

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• ECL82

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110 / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Mirastar S12V [Trockengleichrichter] - Elac Electroacustic GmbH; Kiel

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 340 x 140 x 375 mm / 13.4 x 5.5 x 14.8 inch

• Notes
• Elac Mirastar S12V mit Selen-Gleichrichter. Phonochassis = Miraphon 12.
  Siehe auch Mirastar S12V mit Röhre AZ41.
  Vier Geschwindigkeiten: 16 , 33 , 45 , 78 UPM.

• Source of data
• - - Data from my own collection

• Author
• Model page created by Norbert Haselbach. See "Data change" for further contributors.
