• Country
• Germany

• Manufacturer / Brand
• Elac Electroacustic GmbH; Kiel

• Year
• 1972/1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28739

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 49

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     16 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

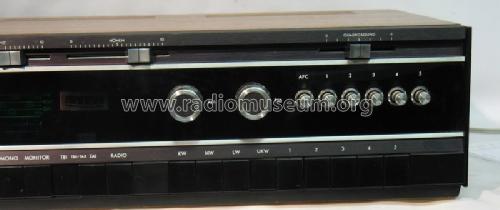

• Model: Quadrosound 3401T - Elac Electroacustic GmbH; Kiel

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 630 x 130 x 300 mm / 24.8 x 5.1 x 11.8 inch

• Notes
• Vollstereo, NF-Verstärker mit zwei Endstufen je 30 W (Sinus).

• Net weight (2.2 lb = 1 kg)
• 11.5 kg / 25 lb 5.3 oz (25.33 lb)

• Price in first year of sale
• 1,098.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1972/1973 / Radiokatalog Band 2, Ernst Erb

• Other Models

• Here you find 266 models, 243 with images and 91 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Elac Electroacustic GmbH; Kiel
