• Country
• Germany

• Manufacturer / Brand
• Elac Electroacustic GmbH; Kiel

• Year
• 1977/1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 123684

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 16

• Semiconductors
• S1998A

• Main principle
• Superheterodyne (common); ZF/IF 465 / 1070 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.7 inch = 19.6 cm

• Power out
• 0.8 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

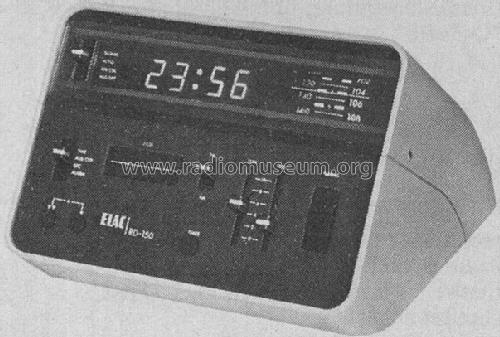

• Model: RD150 - Elac Electroacustic GmbH; Kiel

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 188 x 135 x 180 mm / 7.4 x 5.3 x 7.1 inch

• Notes

• ELAC RD150 Uhrenradio, Stromausfall-Anzeige. 10 Transistoren im Rundfunkempfänger + 6 Transistoren und 1 IC im Netzteil mit Uhr, wurde in verschiedenen Gehäusefarben geliefert.

• Net weight (2.2 lb = 1 kg)
• 1.3 kg / 2 lb 13.8 oz (2.863 lb)

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
