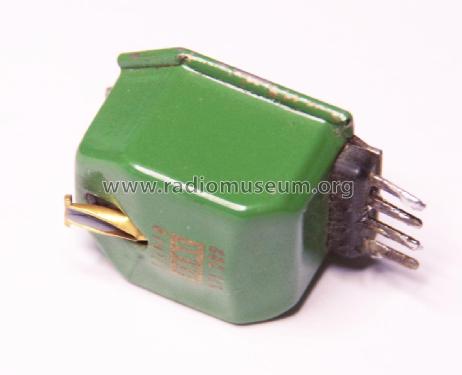

Stereo-Magnetsystem, Tonabnehmer STS 222 D
Elac Electroacustic GmbH; Kiel
- Country
- Germany
- Manufacturer / Brand
- Elac Electroacustic GmbH; Kiel
- Year
- 1961–1966
- Category
- Microphone or Pick-up element
- Radiomuseum.org ID
- 353678
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Stereo-Magnetsystem, Tonabnehmer STS 222 D - Elac Electroacustic GmbH; Kiel
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 19 x 13.5 x 30 mm / 0.7 x 0.5 x 1.2 inch
- Notes
-
Für Miracord 10H und Miraphon 17H .
Diamant 17µ sphärisch, Frequenzgang 20 - 20.000 Hz +/- 2 dB, Übersprechdämpfung 24 dB, Auflagekraft 2,5 - 4p, Ausgangsspannung 22mV
- Net weight (2.2 lb = 1 kg)
- 0.009 kg / 0 lb 0.3 oz (0.02 lb)
- Price in first year of sale
- 94.00 DM
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Rainer Jehl. See "Data change" for further contributors.
