• Country
• United States of America (USA)

• Manufacturer / Brand
• Fisher Radio; New York (NY)

• Year
• 1969–1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28011

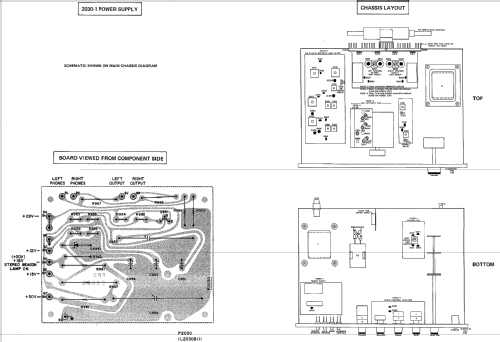

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 29

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 120; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 65 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

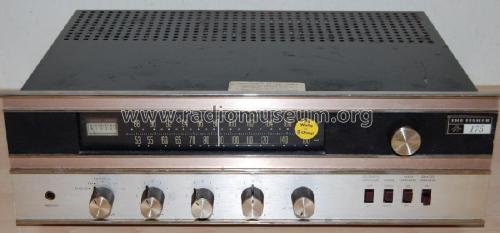

• Model: AM-FM Stereo Receiver 175-T - Fisher Radio; New York NY

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 393 x 133 x 324 mm / 15.5 x 5.2 x 12.8 inch

• Notes
• Vollstereo, NF-Verstärker mit zwei Endstufen je 20 W (Sinus).
  Vertrieb in D über ELAC.

• Net weight (2.2 lb = 1 kg)
• 8.2 kg / 18 lb 1 oz (18.062 lb)

• Price in first year of sale
• 1,298.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1970/1971 / Radiokatalog Band 2, Ernst Erb
