• Country
• United States of America (USA)

• Manufacturer / Brand
• Eldico Inc., New York

• Year
• 1956

• Category
• Amateur Transmitter (only)

• Radiomuseum.org ID
• 108250

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• 12AT7 6BA7 6AL5 6AK6 6AU6 12BY7A 5894 1CP1 5R4 5U4 0A2 0B2

• Main principle
• Radio Frequency Amplification only

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

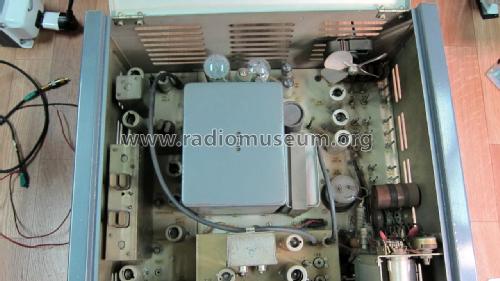

• Model: SSB-100F - Eldico Inc., New York

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 525 x 318 x 340 mm / 20.7 x 12.5 x 13.4 inch

• Notes
• Transmitter for 80, 40, 20, 15, 11, and 10 meter HAM bands, P_out: 100 W PEP, CW 50 W, AM 20 W.

• Net weight (2.2 lb = 1 kg)
• 22.5 kg / 49 lb 9 oz (49.559 lb)

• Price in first year of sale
• 795.00 $

• Mentioned in
• The radio amateurs handbook 1957

• Literature/Schematics (1)
• Kurzwellen - Amateurfunkgeräte, R. Birchel

• Author
• Model page created by Otto Frosinn. See "Data change" for further contributors.
