- Country
- Italy
- Manufacturer / Brand
- Electa Radio, A. Galimberti; Milano
- Year
- 1950/1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 107192
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 2.5 W (unknown quality)
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org

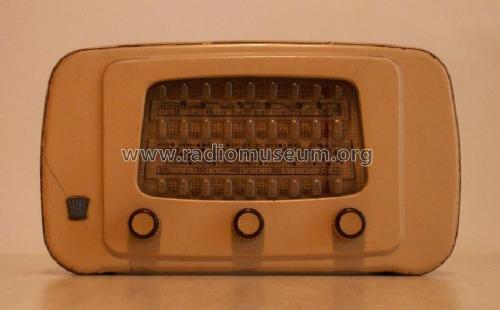

- Model: 520 - Electa Radio, A. Galimberti;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 250 x 140 x 100 mm / 9.8 x 5.5 x 3.9 inch
- Source of data
- Guida Pratica Antique Radio II (2000)
- Mentioned in
- -- Original prospect or advert (L'Antenna, n. 5, 1951)
- Literature/Schematics (1)
- L'Antenna, n.6, giugno 1950
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
