• Country
• Italy

• Manufacturer / Brand
• Electa Radio, A. Galimberti; Milano

• Year
• 1952/1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 104670

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UF41 UBC41 UL41 UY41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 125; 145; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch

• Power out
• 3.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

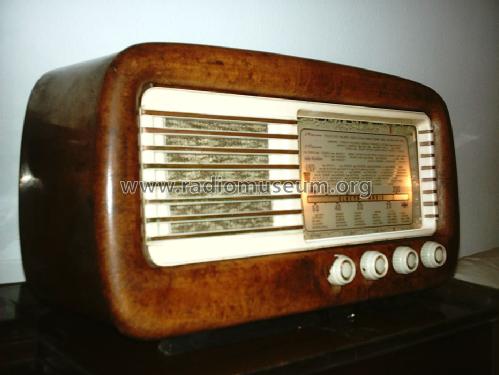

• Model: 522 - Electa Radio, A. Galimberti;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 520 x 290 x 200 mm / 20.5 x 11.4 x 7.9 inch

• Source of data
• Guida Pratica Antique Radio II (2000)

• Mentioned in

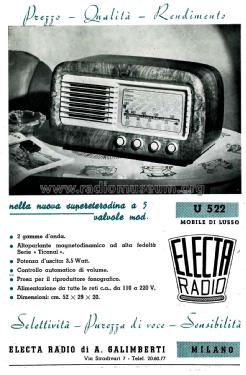

• -- Original-techn. papers. (Radio e Televisione, n. 32, dicembre 1952)

• Author
• Model page created by Romolo Amazio. See "Data change" for further contributors.
