• Country
• United States of America (USA)

• Manufacturer / Brand
• Electrad Inc.; New York (NY)

• Year
• 1929 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 38027

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 324 345 280

• Main principle
• Audio-Amplification

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• - For headphones or amp.

• from Radiomuseum.org
• Model: Loftin-White 45 - Electrad Inc.; New York NY

• External source of data
• Ernst Erb

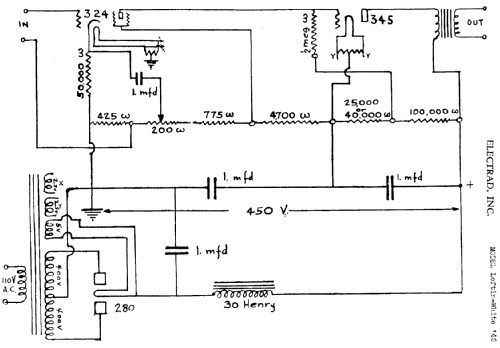

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Literature/Schematics (1)
• -- Schematic

• Literature/Schematics (2)
• Radio Broadcast, April 1930, p. 355
