• Country
• Great Britain (UK)

• Manufacturer / Brand
• Electric Audio Reproducers (EAR); London, Isleworth

• Year
• 1958 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 148615

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• EF86 ECL82 ECL82 EZ80

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• 4 Loudspeakers

• from Radiomuseum.org

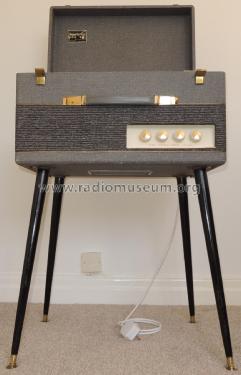

• Model: Triple Four - Electric Audio Reproducers EAR

• Shape
• Tablemodel, with any shape - general.

• Notes
• Portable record player. Speakers: base 6x10 inch, mid 4x7 inch, two treble units 4inch.

• Source of data
• -- Schematic

• Circuit diagram reference
• Radio and TV Servicing books (R&TVS) book

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
