- Country
- United States of America (USA)
- Manufacturer / Brand
- Electro-Voice Inc.; USA
- Year
- 1956 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 98543
-
- Brand: Buchanan

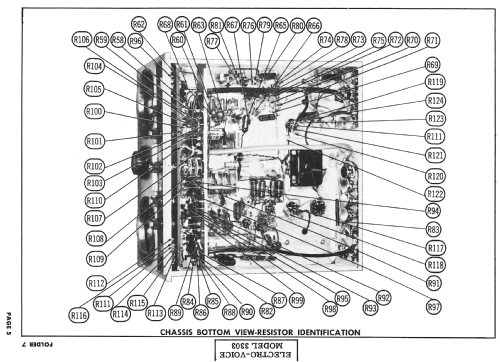

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 19
- Valves / Tubes
- 6BK7A 6U8 6J6 6BA6 6BA6 6AU6 6AU6 6AL5 12AT7 6AL7GT 6BA6 6BE6 6AU6 12AT7 12AD7 12AT7 12AX7 5Y3GT 6X4
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: 3303 - Electro-Voice Inc.; USA
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 15 x 8 x 14.5 inch / 381 x 203 x 368 mm
- Notes
-
Electro-Voice model 3303 is an AC operated FM-AM tuner with preamplifier.
- Price in first year of sale
- 466.00 $
- Literature/Schematics (1)
- Allied Radio Catalog Nº 150, 1956
- Literature/Schematics (2)

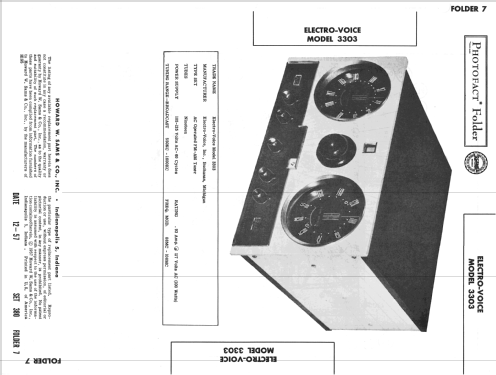

- Photofact Folder, Howard W. SAMS (Set 380 Folder 7 dated 12-57)
- Author
- Model page created by Vitor Oliveira. See "Data change" for further contributors.
