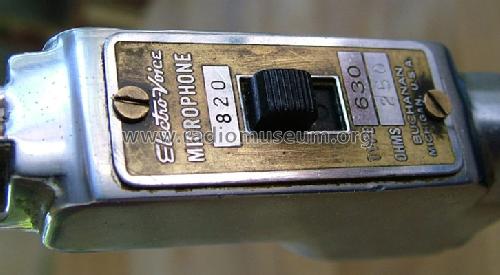

Dynamic Omni-Directional Microphone 630
Electro-Voice Inc.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Electro-Voice Inc.; USA
- Year
- 1952 ??
- Category
- Microphone or Pick-up element
- Radiomuseum.org ID
- 196063
-
- Brand: Buchanan
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Material
- Metal case
- from Radiomuseum.org
- Model: Dynamic Omni-Directional Microphone 630 - Electro-Voice Inc.; USA
- Dimensions (WHD)
- 50.8 x 158.8 x 0 mm / 2 x 6.3 x 0 inch
- Notes
-
impedance 150 ohms/high Z, selectable at cable connector, 150 ohms impedance is balanced to ground.
Frequency Response 60 - 11000 Hz
Satin Chrome finish
List price Year 1958: 52.50 USD
- Net weight (2.2 lb = 1 kg)
- 0.436 kg / 0 lb 15.4 oz (0.96 lb)
- Price in first year of sale
- 80.00 $
- Mentioned in
- Audio Magazine January 1958
- Author
- Model page created by Hannes Gerber. See "Data change" for further contributors.
