• Country
• United States of America (USA)

• Manufacturer / Brand
• Electro-Voice Inc.; USA

• Year
• 1956 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 98547

• • Brand: Buchanan

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 12AX7 12AT7 12AX7 6X4

• Main principle
• Audio-Amplification; 6 AF stage(s)

• Wave bands
• - without

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 110-120 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

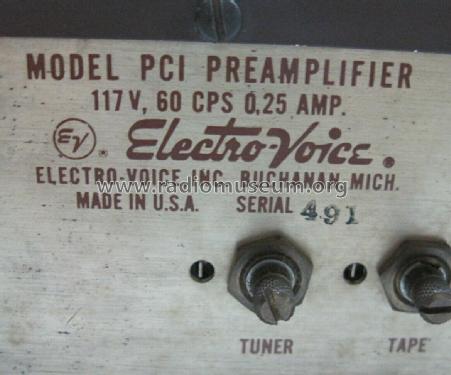

• Model: Preamplifier PC-1 - Electro-Voice Inc.; USA

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 15 x 4 x 8 inch / 381 x 102 x 203 mm

• Notes

• Control Center, remote preamp-equalizer, mono.

• Price in first year of sale
• 166.00 $

• Mentioned in
• Allied Radio Catalog Nº 150, 1956

• Literature/Schematics (1)

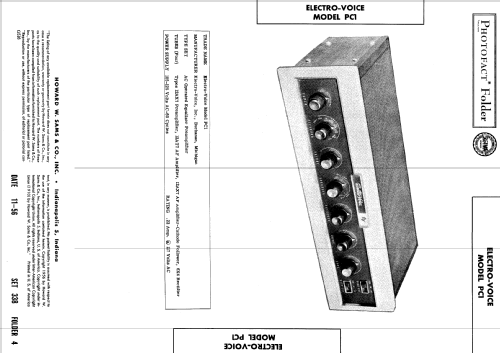

• Photofact Folder, Howard W. SAMS (Date 11-56, Set 338, Folder 4)

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
