• Country
• Canada

• Manufacturer / Brand
• Electrohome (Dominion Industries, ex Phonola); Kitchener (Ontario)

• Year
• 1947/1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 181058

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6SA7 6SK7 6SQ7 6J5 6F6G 6F6G 5Y4G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

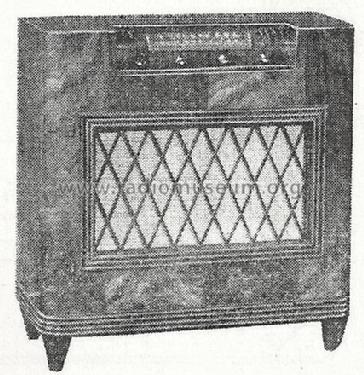

• Model: 146 P1-4726Z - Electrohome Dominion

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 30 x 32.25 x 13 inch / 762 x 819 x 330 mm

• Notes
• Electrohome 146, P1-4726Z (60 Hz only), P1-4726 (25-60 Hz);
  BC: 535 - 1650 kHz,
  SW: 5.7 - 17.5 MHz, 85 W power consumption. Push-pull audio amplifier.

• Source of data
• - - Manufacturers Literature

• Circuit diagram reference
• Radio College of Canada

• Mentioned in
• RCC Electrohome 12

• Author
• Model page created by a member from A. See "Data change" for further contributors.
